SiPM for medical imaging are attractive candidates for the replacement of the conventional PMT in PET and SPECT imaging, since they provide high gain with low voltage and fast response, they are very compact and compatible with magnetic resonance setups. Nevertheless, there are still several challenges, for example, SiPM requires optimization for larger matrices, signal amplification and digitization.
PRODUCT DETAILS

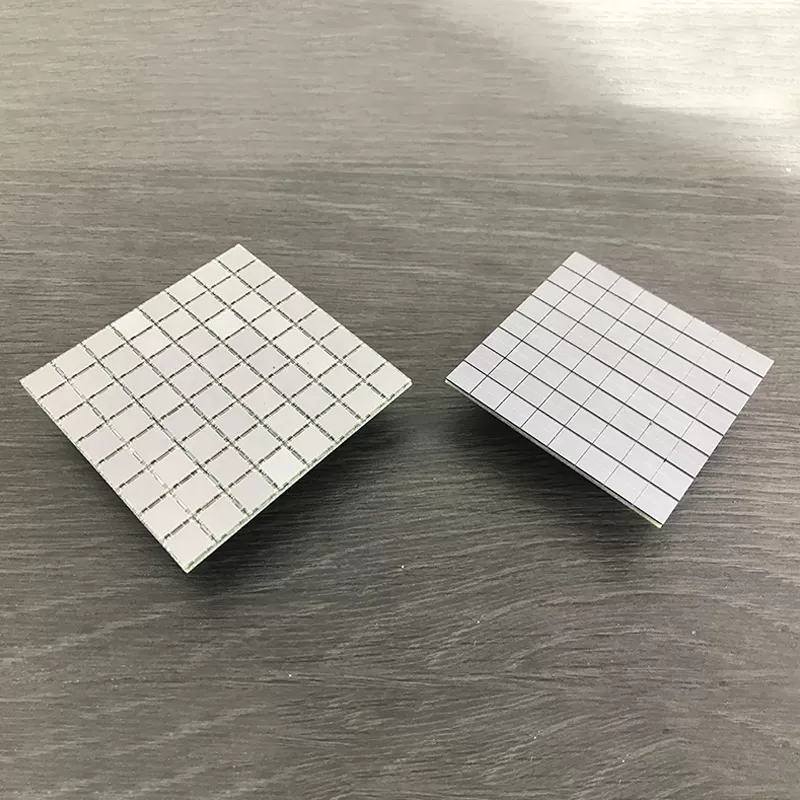

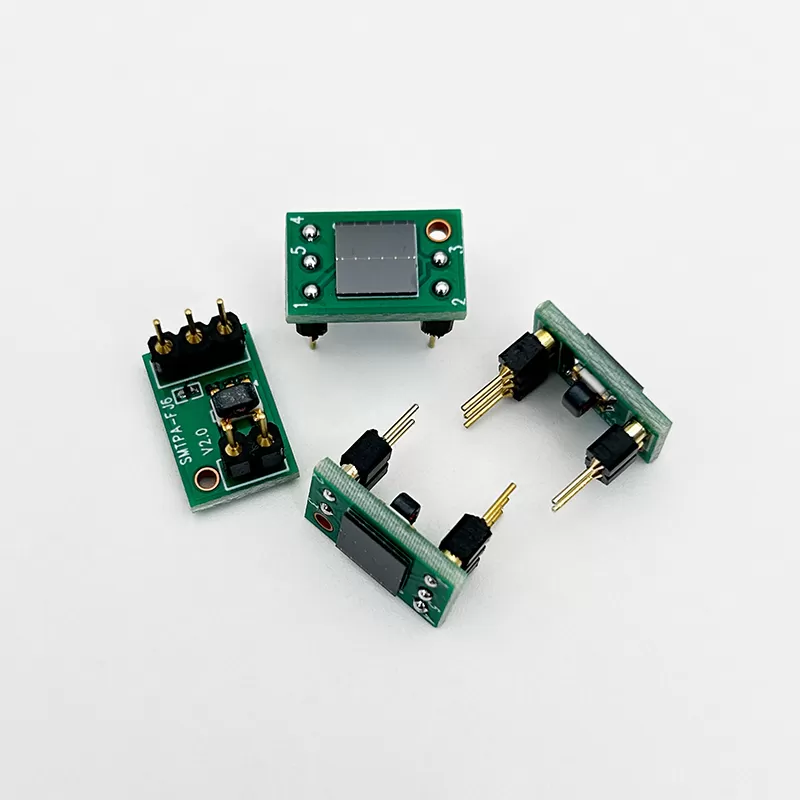

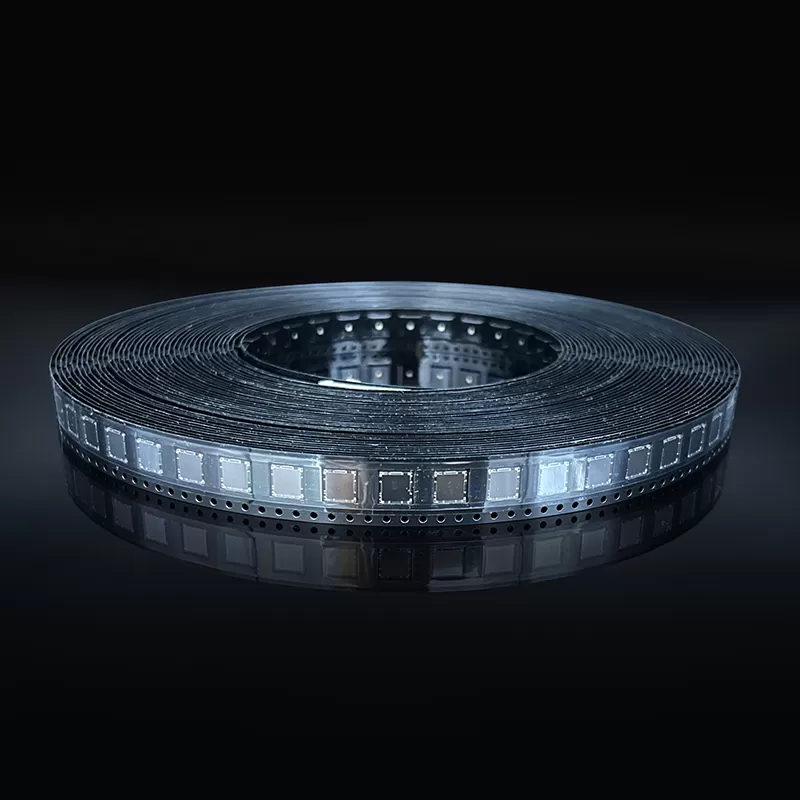

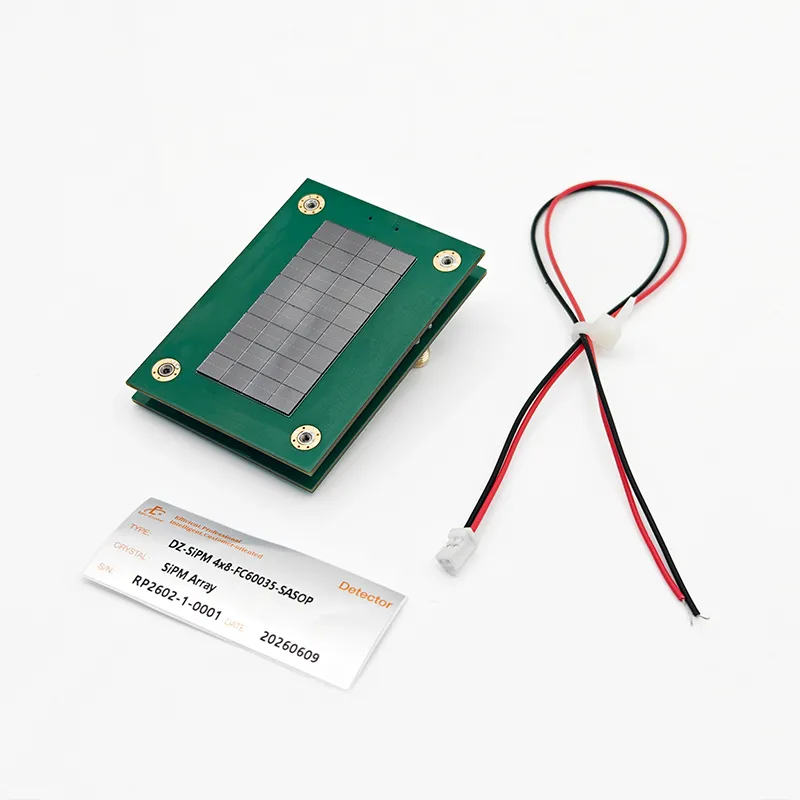

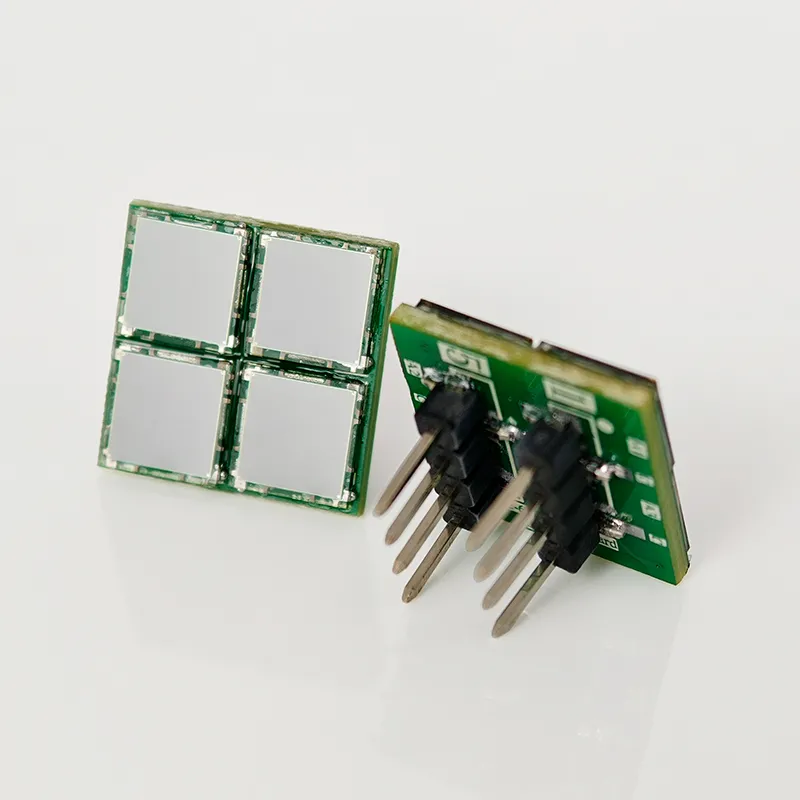

Based on single ONSEMI MicroFC-30035-SMT, MicroFC-60035-SMT, MicroFJ-30035-TSV or MicroFJ-60035-TSV, it is workable for us to fabricate the SIPM components, for exmaple single point test board, and SIPM arrays. The configurations of SIPM array can be customized, with electronics of signal summation or position encoding circuits, amplifier and power supply circuits to be including.
SIPM arrays can be coupled with different type of scintillators to form integrated detectors for the detection of different types of radiation(X, Gamma, Alpha/Beta, etc.). Common application include energy spectrum probes, gamma counters, radiation imaging detectors, etc.
| Model | SIPM | Number of pixels | Overall Size | Datasheet |
| ET_SST_C60035_N_P_P | C60035 | 1 | 9 x 14 mm | |
| ET_SST_J60035_N_P_P | J60035 | 1 | 9 x 14 mm | |

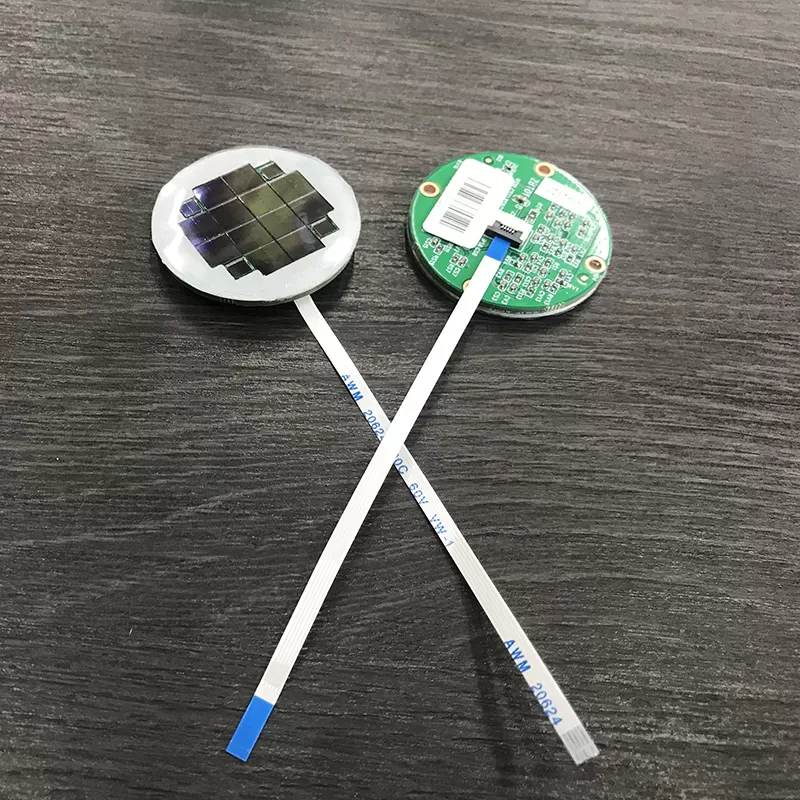

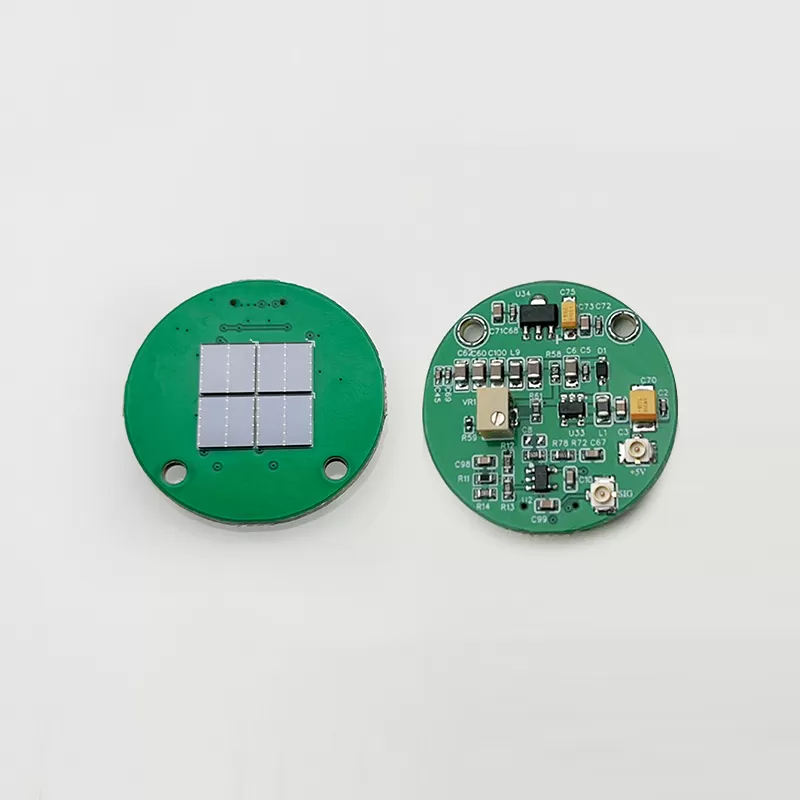

| ET_SA_J60035_2x2_SO | J60035 | 4 | 30 mm diameter | |
| ET_SA_C60035_4x4_SO | C60035 | 16 | 55 mm diameter | |

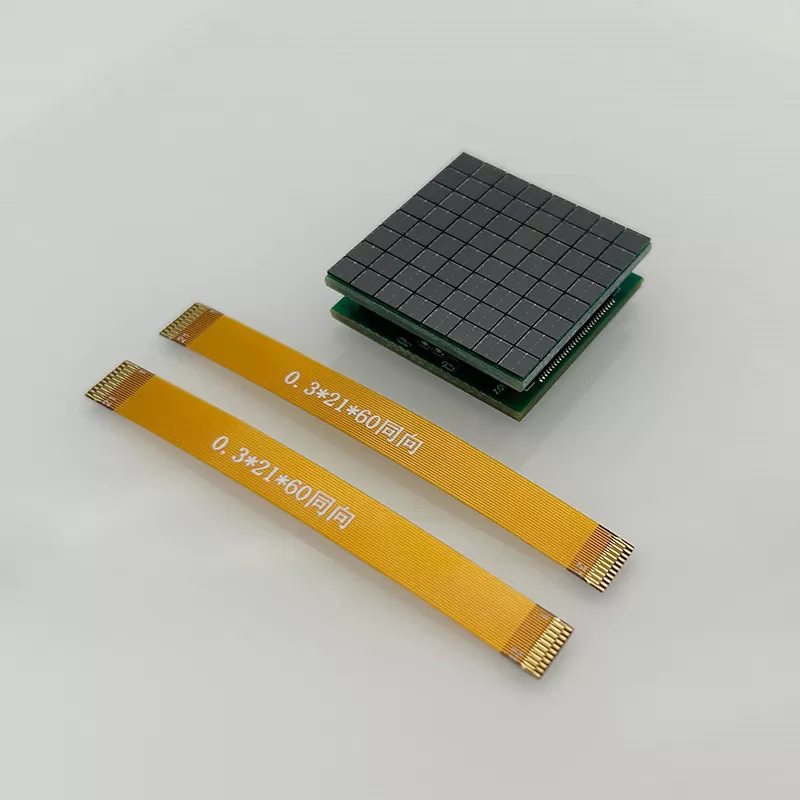

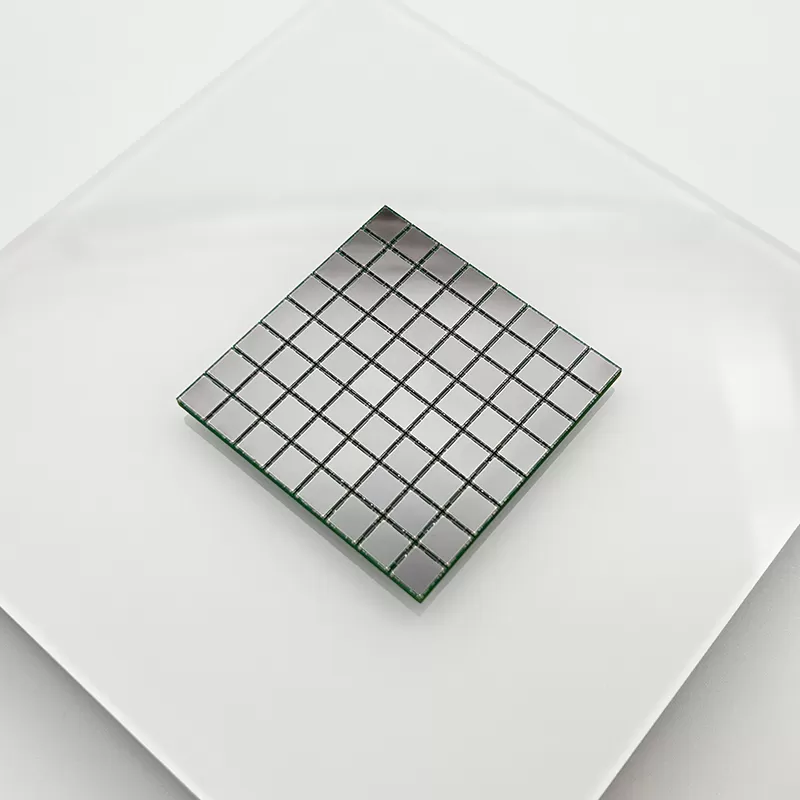

| ET_SA_J30035_8x8_SO | J30035 | 64 | 26.88 x 26.88 mm | To be Updated |
| ET_SA_J60035_8x8_SO | J60035 | 64 | 50.64 x 50.64 mm | To be Updated |
| ET_SA_J30035_16x16_SO | J30035 | 256 | 53.76 x 53.76 mm | To be Updated |

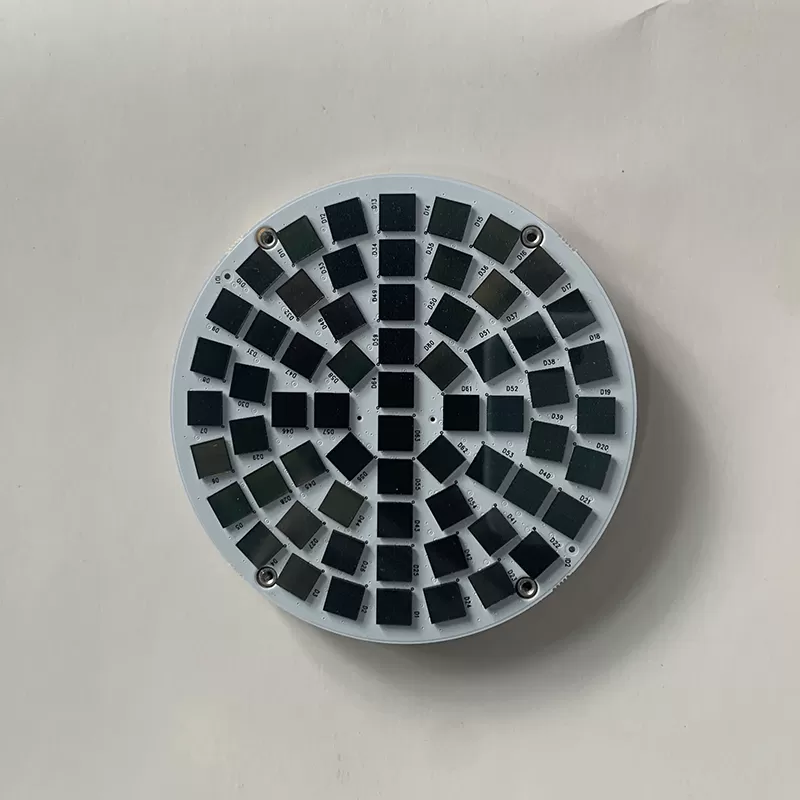

| ET_SA_J6_1.0IN_16_SUM | J60035 | 16 | 38 mm diameter | To be Updated |
| ET_SA_J6_1.5IN_32_SUM | J60035 | 32 | 45.4 mm diameter | To be Updated |
| ET_SA_J6_2.0IN_22_SUM | J60035 | 22 | 50.8 mm diameter | To be Updated |
| ET_SA_J6_3.0IN_64_SUM | J60035 | 64 | 82 mm diameter | To be Updated |
| ET_SA_J6_5.0IN_172_SUM | J60035 | 172 | 130 mm diameter | To be Updated |
