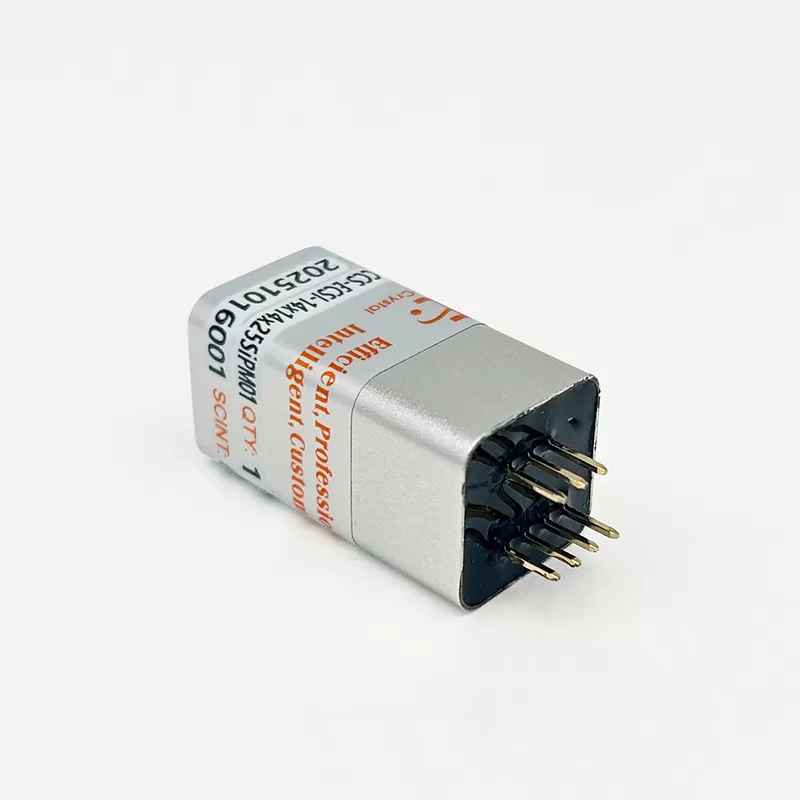

In addition to Photomultiplier Tube (PMT) assemblies, scintillation detectors can also utilize SiPM (Silicon Photomultiplier) assemblies. SiPMs are solid-state devices that can be used as an alternative to PMTs for light detection in scintillation detectors.
PRODUCT DETAILS

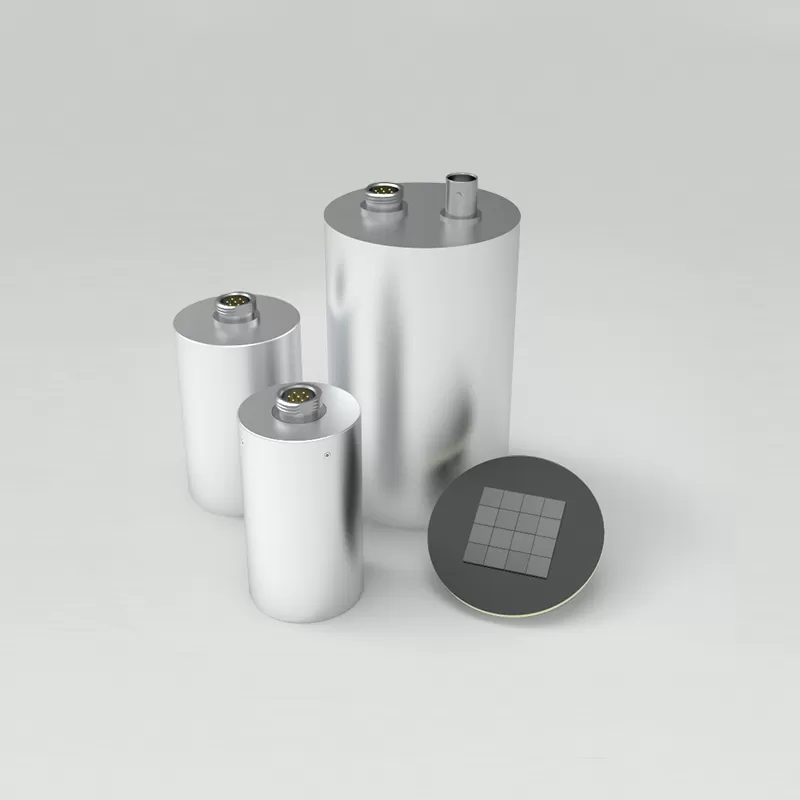

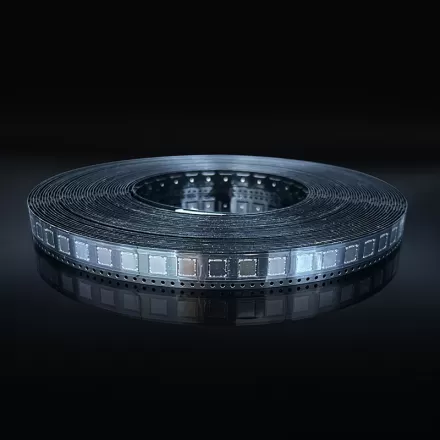

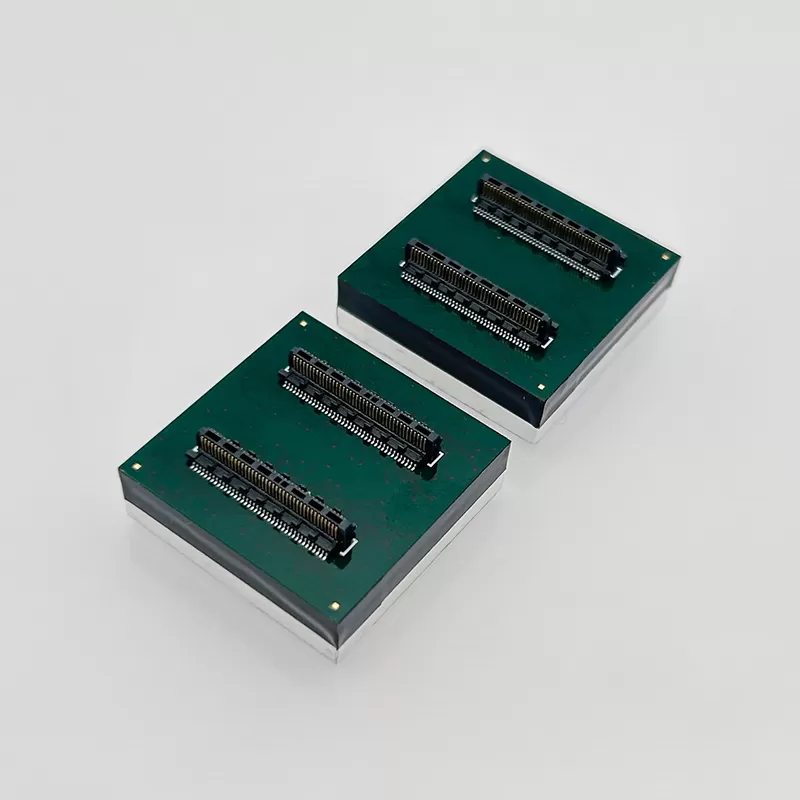

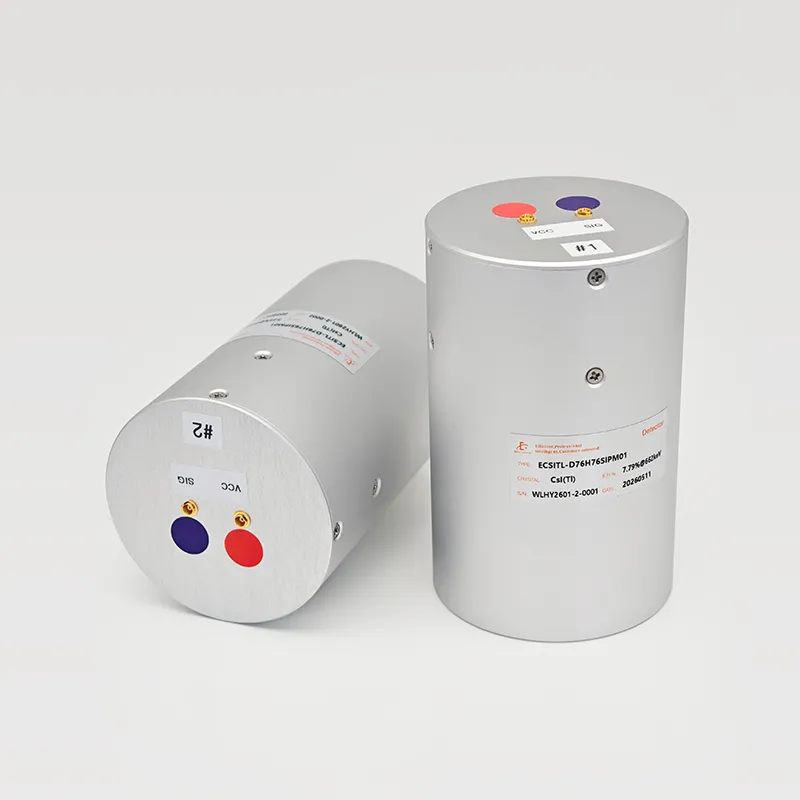

Similar to PMT assemblies, Epic Crystal offer various kinds of options on the scintillation materials, such as GAGG(Ce), NaI(Tl), LaBr3(Ce), CeBr3, CsI(Tl/Na), BGO and plastic scintillator, etc, depend on actual requirement from customers. The readout system SiPM arrays are based on Onsemi C or J series single SiPM, including standard design for 1.0", 1.5", 2.0", 3.0", 4.0" and 5" scintillators. The electronics have summation, preamplification and power supply board.
| Scintillators | Model | Scintillator Size | Light Sensor | PHR(Cs137) | Datasheet |

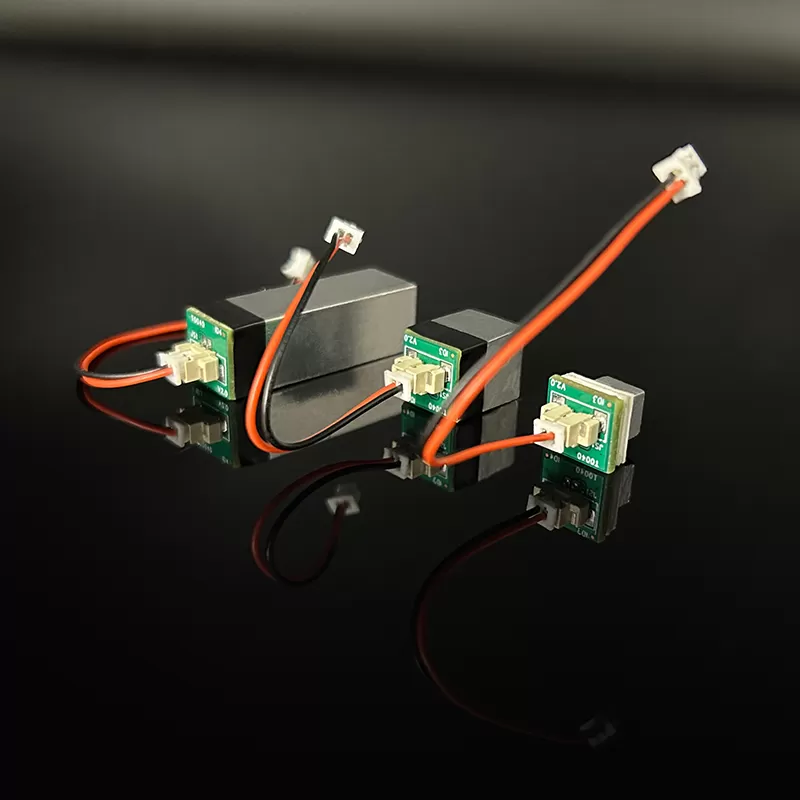

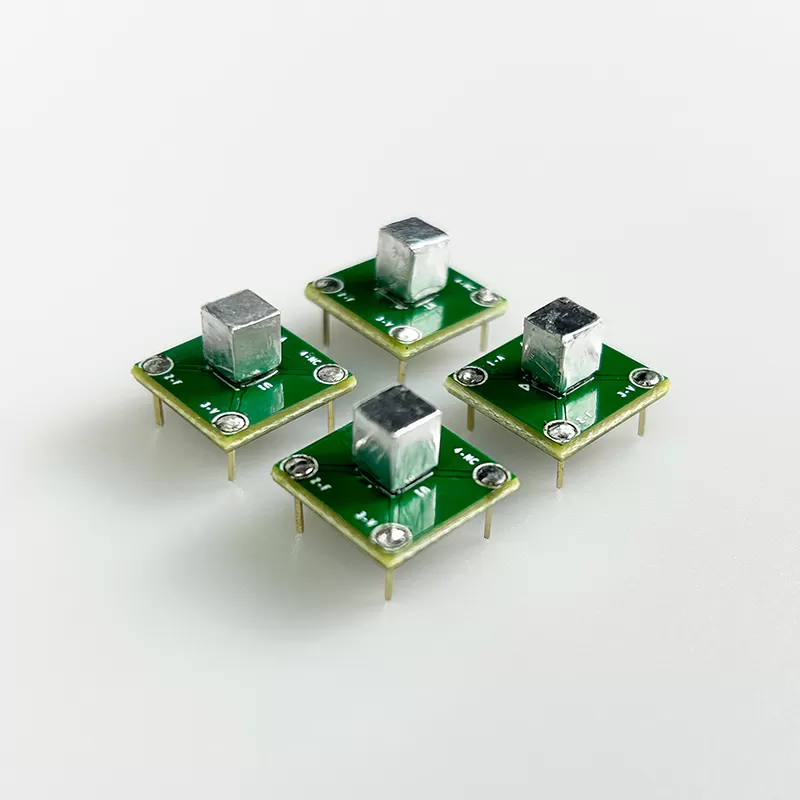

| CsI(Tl) | ECS-06060601 | 6x6x6 mm | SIPM | <=7.5% | |
| GAGG(Ce) | EGS-06060601 | 6x6x6 mm | SIPM | <=6.5% | |

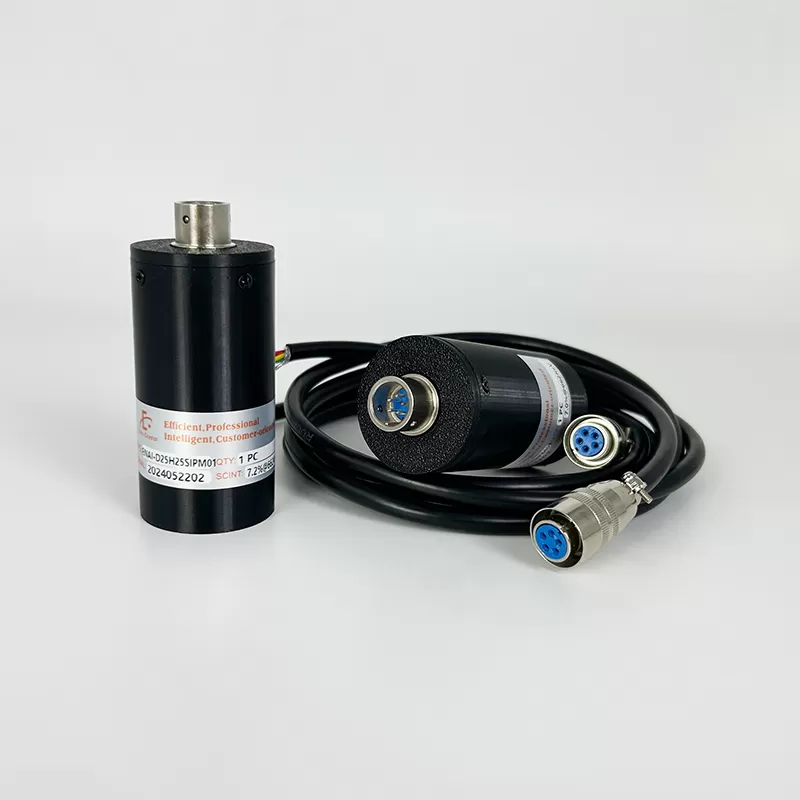

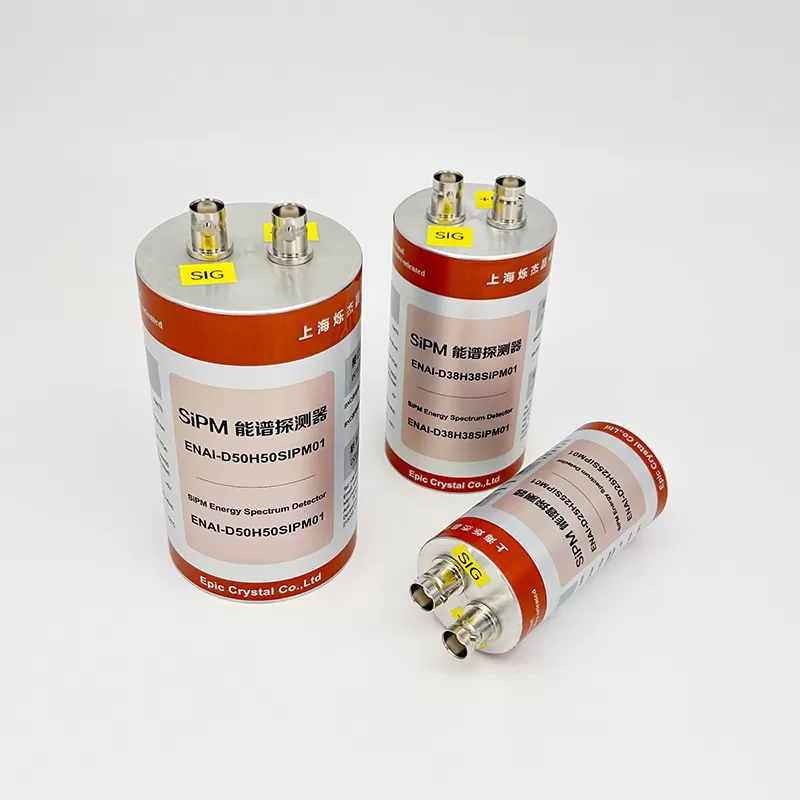

| NaI(Tl) | ENAI-D25H25SIPM01 | 1.0"x1.0" | SIPM Array | <=7.5% | |
| NaI(Tl) | ENAI-D38H38SIPM01 | 1.5"x1.5" | SIPM Array | <=7.5% | |
| NaI(Tl) | ENAI-D50H50SIPM01 | 2.0"x2.0" | SIPM Array | <=7.5% | |
| LaBr3(Ce) | ELBC-D25H25SIPM01 | 1.0"x1.0" | SIPM Array | <=3.5% | |
| LaBr3(Ce) | ELBC-D38H38SIPM01 | 1.5"x1.5" | SIPM Array | <=3.5% | |
| LaBr3(Ce) | ELBC-D38H38SE | 1.5"x1.5" | SIPM Array | <=3.0% | |
| LaBr3(Ce) | ELBC-D50H50SIPM01 | 2.0"x2.0" | SIPM Array | <=4.0% | |
| LaBr3(Ce) | ELBC-D50H50SE | 2.0"x2.0" | SIPM Array | <=3.0% | |

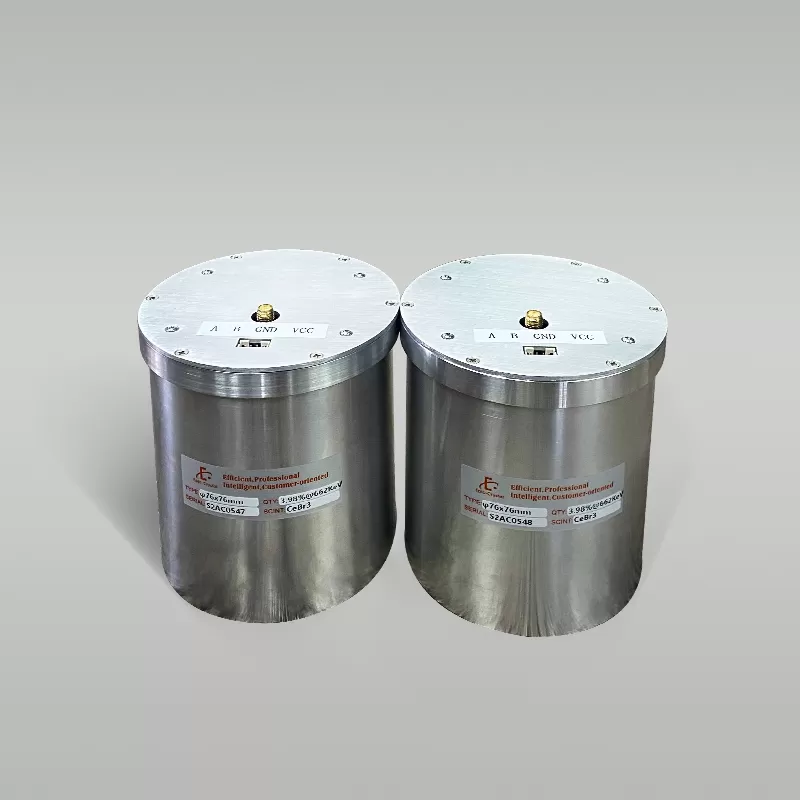

| CeBr3 | ECB-D25H25SIPM01 | 1.0"x1.0" | SIPM Array | <=4.5% | |
| CeBr3 | ECB-D38H38SIPM01 | 1.5"x1.5" | SIPM Array | <=4.5% | |
| CeBr3 | ECB-D50H50SIPM01 | 2.0"x2.0" | SIPM Array | <=4.5% | |
| BGO | EBG0-D50H50SIPM01 | 2.0"x2.0" | SIPM Array | <=12% |
