MCA EGW3043

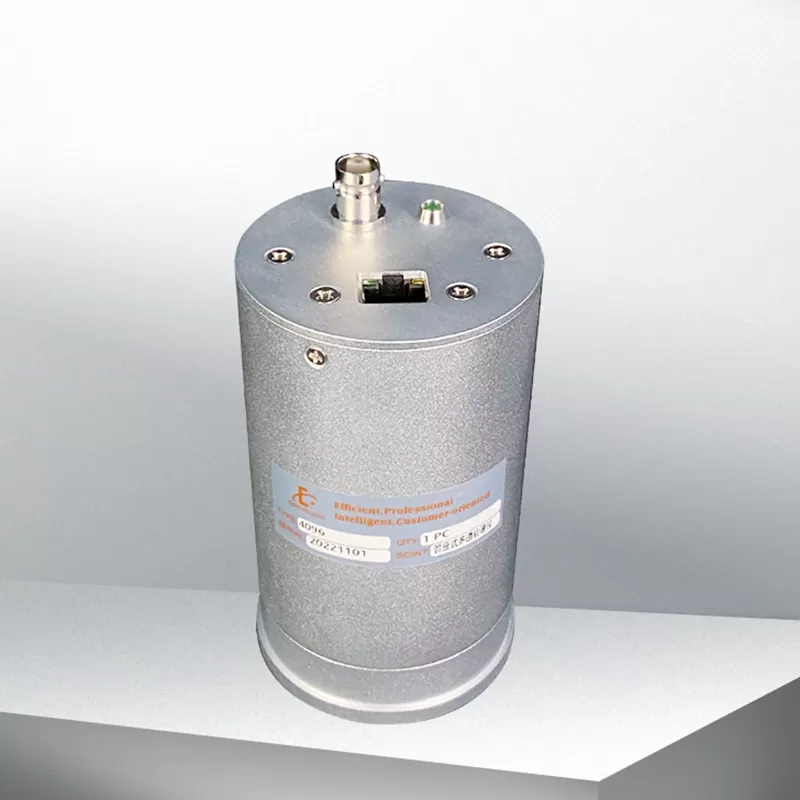

EGW3043 Tube Base Multi-Channel Analyzer is a tube base pulse height analyzer, including a 14-pin photomultiplier base, a built-in MCA with a resolution of 4096 channels and matching amplifiers, high-voltage power supplies, etc, which can work in a Single-Channel Analyzer (SCA)  mode or Multi-Channel pulse height Analyzer (MCA) mode. The device is DC low-voltage power supply, and the control and data output interface is a network interface. It can output the original ADC data in the list mode and also can output the energy spectrum data directly. Select a suitable detector to connect a computer, and use the matching energy spectrum acquisition and analysis software to collect and display the energy spectrum, and automatically find peaks. When passing the energy calibration, artificial and natural isotopes can be identified.

Features and Technical Parameters

◇ MCA Resolution: 4096

◇ Sample hold and ADC conversion time: 2 μs

◇ Input pulse analysis range: 0~+5V

◇ Input count rate: 100 kcps (20% count rate loss), suitable for high γintensity application

◇ Data interface: TCP/IP (RJ45)

◇ Built-in voltage divider and Pre- amplifier and main amplifier, built-in high-voltage power

◇ Data output mode: List mode/Spectrum mode

◇ Matching software function: energy spectrum acquisition, display, ROI analysis, energy spectrum smoothing, automatically finding peak and identifying isotopes, etc.

◇ Provide data communication protocol, users can develop collection and processing programs by themselves based on the communication protocol

◇ It can be matched with NaI(Tl)、LaBr₃(Ce) and other scintillation detector, and can be used via 14-pin E678-14W tube socket connecting with the photomultiplier tube (PMT) with 8-level or 10-level dynode structure
