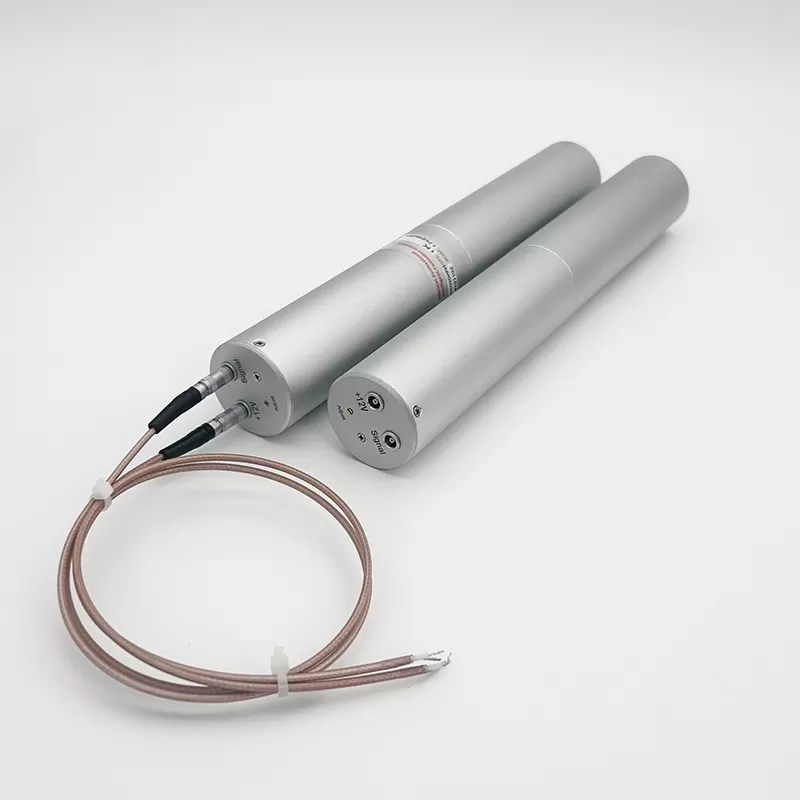

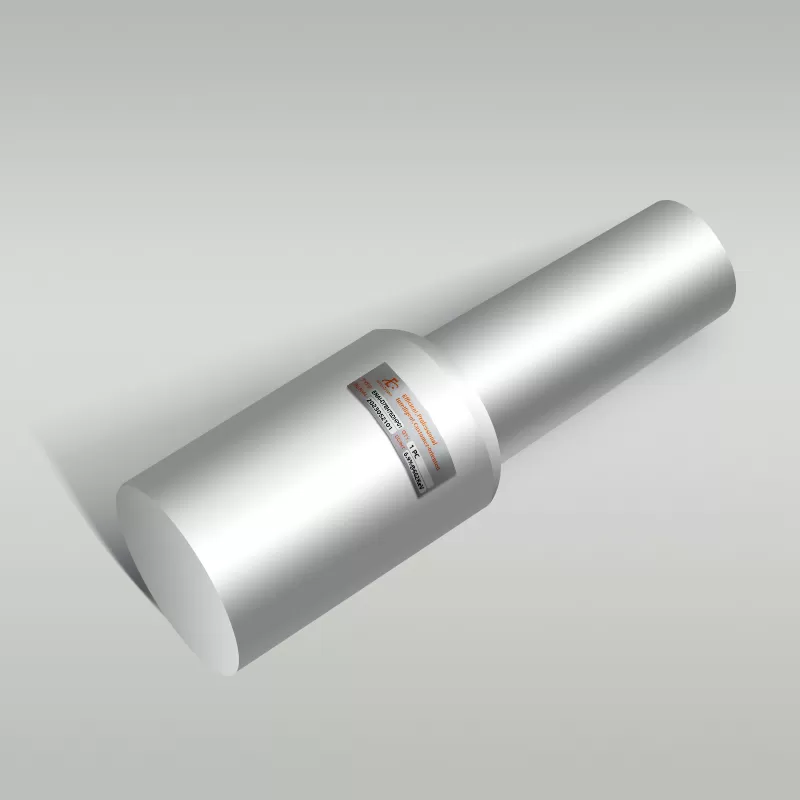

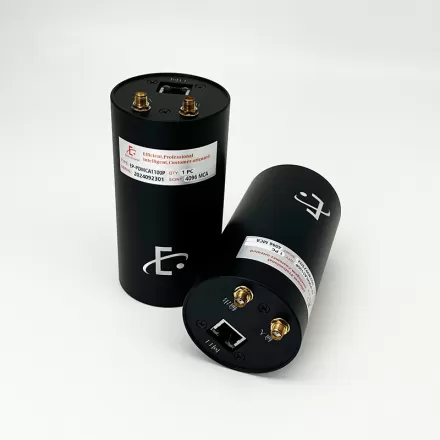

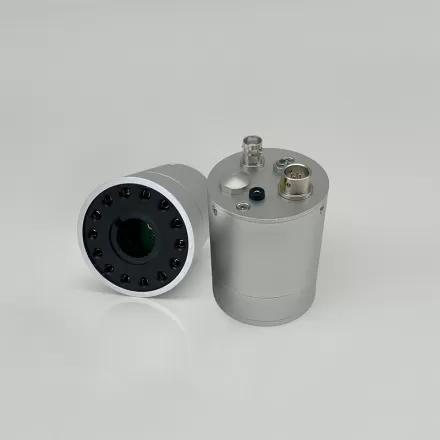

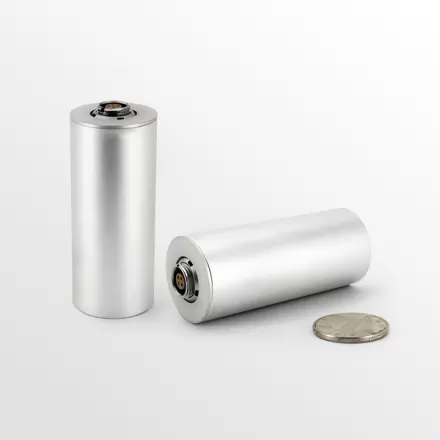

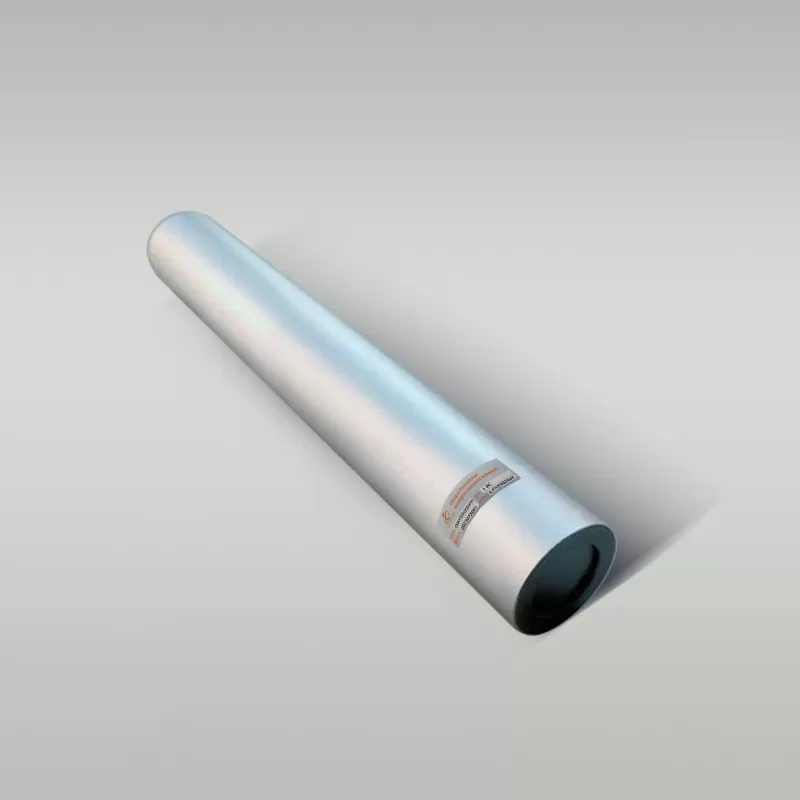

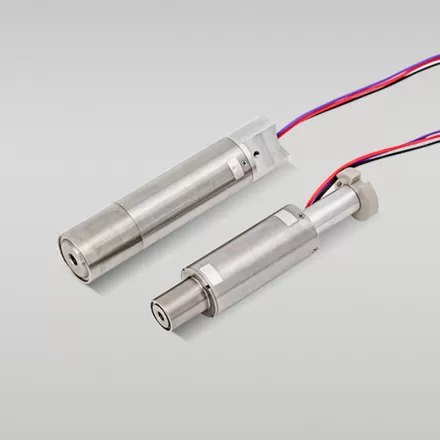

Integrated scintillation detectors generally contain a scintillator, photo multiplifier tube(PMT) and electronic modules. Due to its high detection efficiency, good energy resolution, stable signal output and suitable configuration design, they have been widely used in nuclear radiation detection, environment monitoring, density and level measurement as well as security inspection field.
PRODUCT DETAILS
Integrated scintillation detectors generally contain a scintillator, photo multiplifier tube(PMT) and electronic modules. Due to its high detection efficiency, good energy resolution, stable signal output and suitable configuration design, they have been widely used in nuclear radiation detection, environment monitoring, density and level measurement as well as security inspection field.

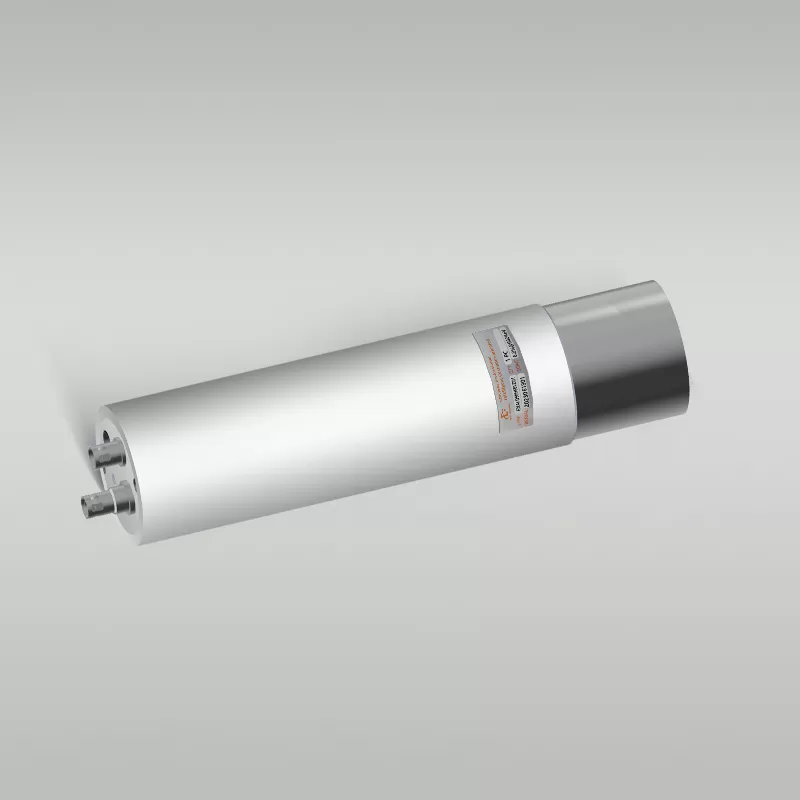

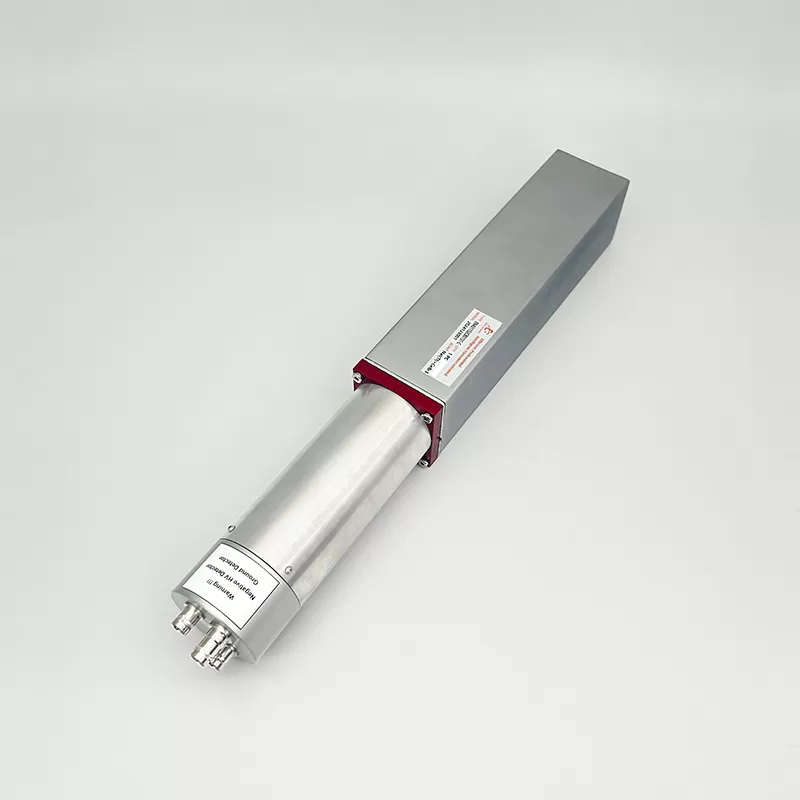

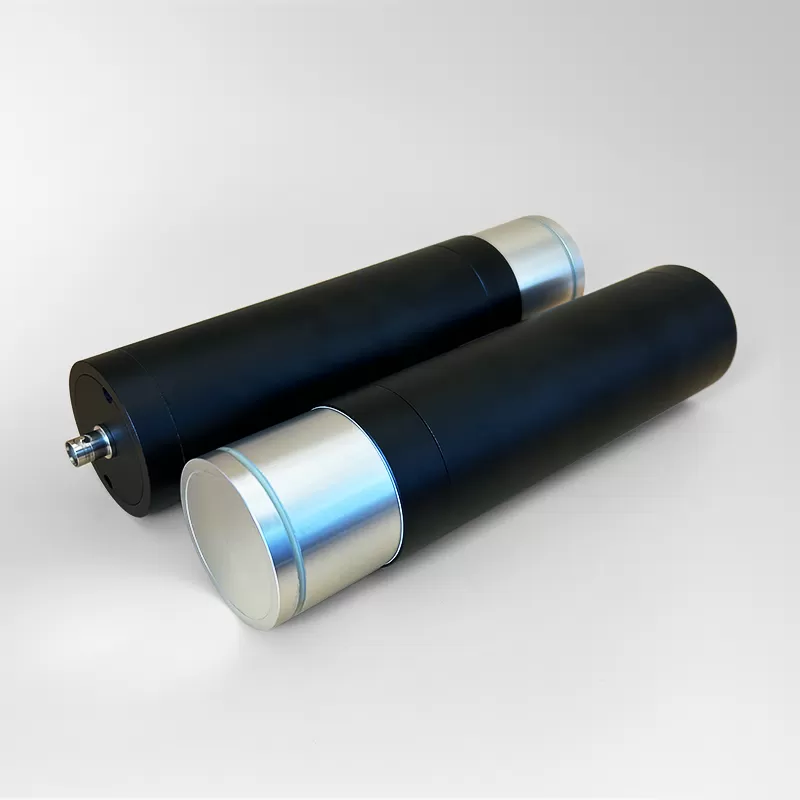

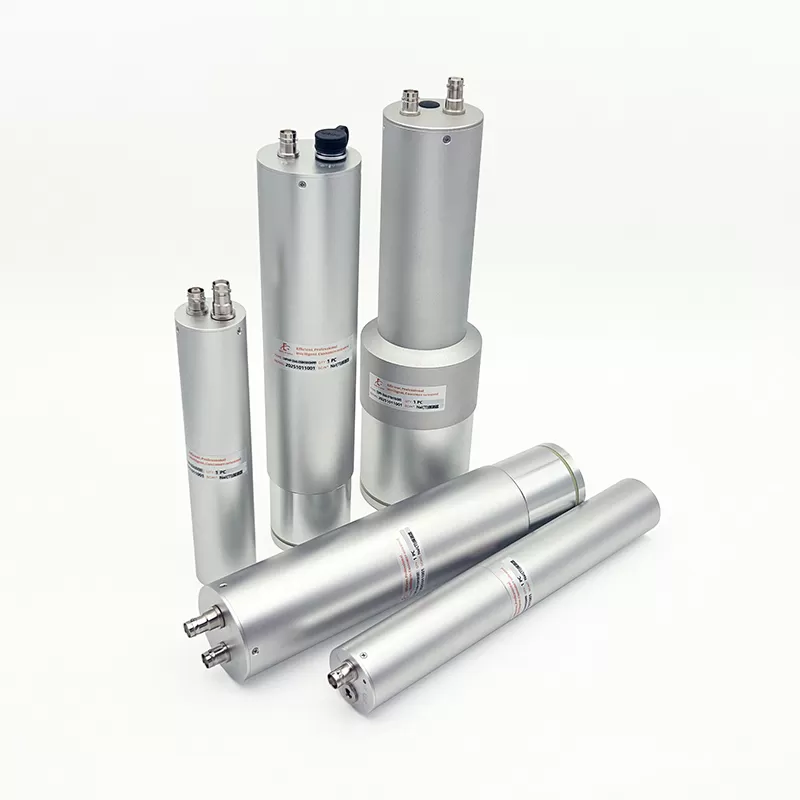

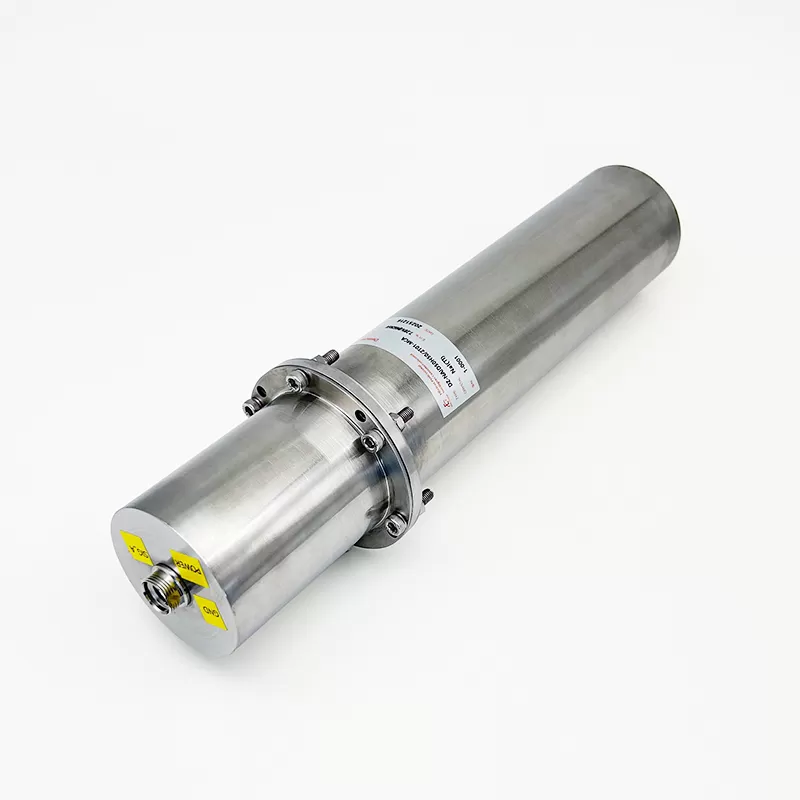

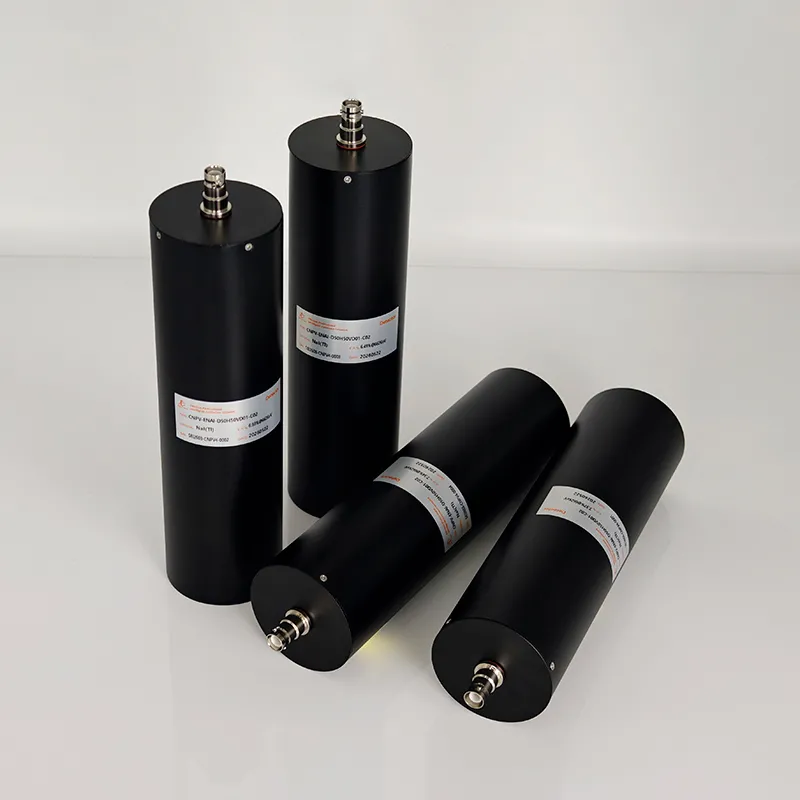

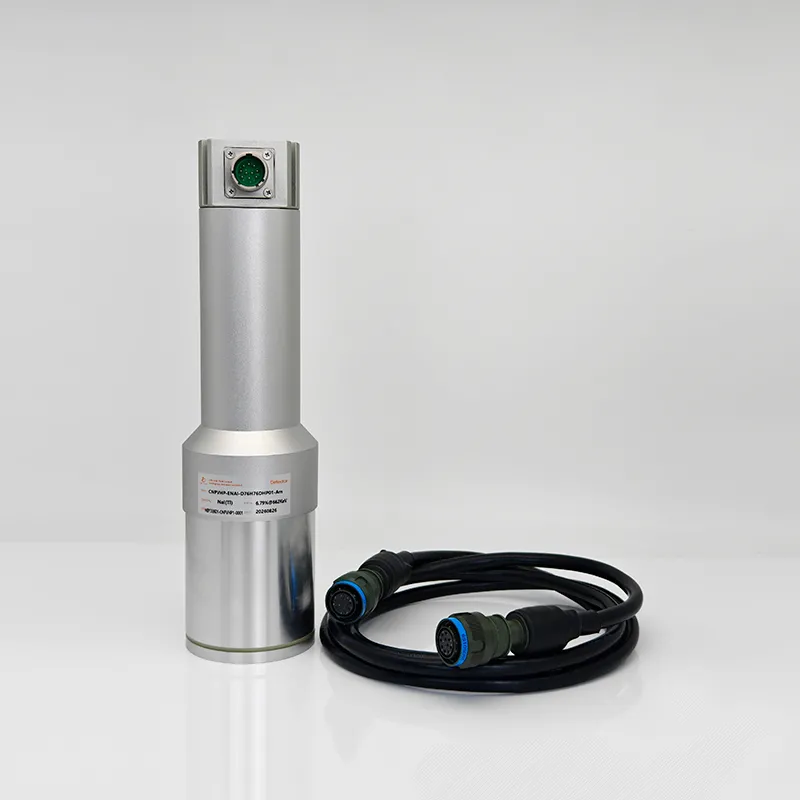

Epic crystal provides a variety of scintillation detector options. The scintillator can be CsI(Tl), NaI(Tl), LaBr3(Ce), CeBr3, BGO, GAGG(Ce), Plastic Scintillator and others. Photo multiplifier tubes(PMTs) is done according to request. While the electronic modules can be voltage divider/Preamplifier/Built-in HV, with connectors BNC, SHV, MHV or 4 Pins etc. Detectors design is flexible and user friendly, which can be used for the construction of different photon counters or nuclear radiation detectors.
| Scintillator | Model | Scintillator Size | Electronic Module | PHR(Cs137) | Datasheet |
| NaI(Tl) | ENAI-D25H25VD01 | 1"x1" | VD | <=7.5% | |
| NaI(Tl) | ENAI-D25H25DHP01 | 1"x1" | VD, HV, Preamplifier | <=7.5% | |
| NaI(Tl) | ENAI-D50H50VD01 | 2"x2" | VD | <=7.5% | |
| NaI(Tl) | ENAI-D50H50DHP01 | 2"x2" | VD, HV, Preamplifier | <=7.5% | |
| NaI(Tl) | ENAI-D76H76VD01 | 3"x3" | VD | <=7.5% | |
| NaI(Tl) | ENAI-D76H76DHP01 | 3"x3" | VD, HV, Preamplifier | <-7.5% | |
| NaI(Tl) | EPHP-020201C Waterproof Detector | 2"x2" | VD, HV, Preamplifier | <=7.5% | |
| EPS-100 | EPS-D50H50VD01 | 2"x2" | VD | / |
