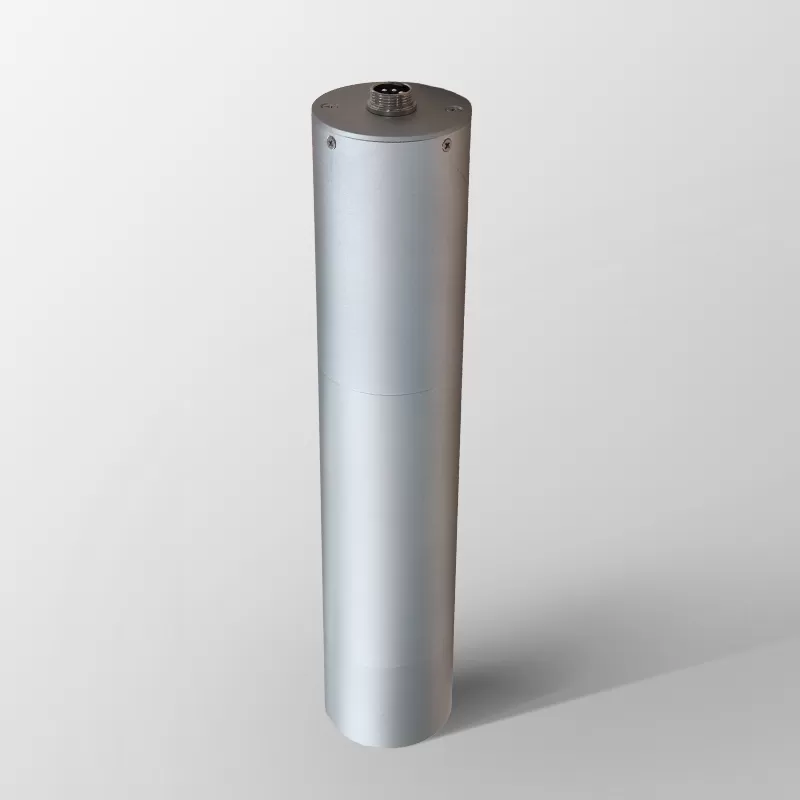

The EPSD-XY001GW plastic scintillator detector is mainly used for continuous monitoring of X-ray and gamma-ray radiation in the environment. The instrument probe uses a current integrator type plastic scintillator detector, which can be used for both general environmental monitoring and monitoring of pulsed radiation beams such as accelerators.
PRODUCT DETAILS
The EPSD-XY001GW plastic scintillator detector is mainly used for continuous monitoring of X-ray and gamma-ray radiation in the environment. The instrument probe uses a current integrator type plastic scintillator detector, which can be used for both general environmental monitoring and monitoring of pulsed radiation beams such as accelerators.
It is widely used in radiation protection, workplace monitoring, nuclear medicine, nuclear power plants, and other fields. The probe has high sensitivity and stable and reliable measurement results. The equipment uses the standard Modbus transmission protocol, which allows flexible networking for building multi-detector area monitoring systems.
Main technical parameters:
Energy response: 30 keV~3 MeV
Measurement range: 0.01 uSv/h - 100 mSv/h also suitable for pulsed radiation fields
Background: Less than 10 nSv/h
Crystal: 2-inch plastic scintillator
Weight: 0.8 kg
Size: Dimeter 60 mm, Length 295 mm
Communication mode: RS485
Power supply: +12 V
