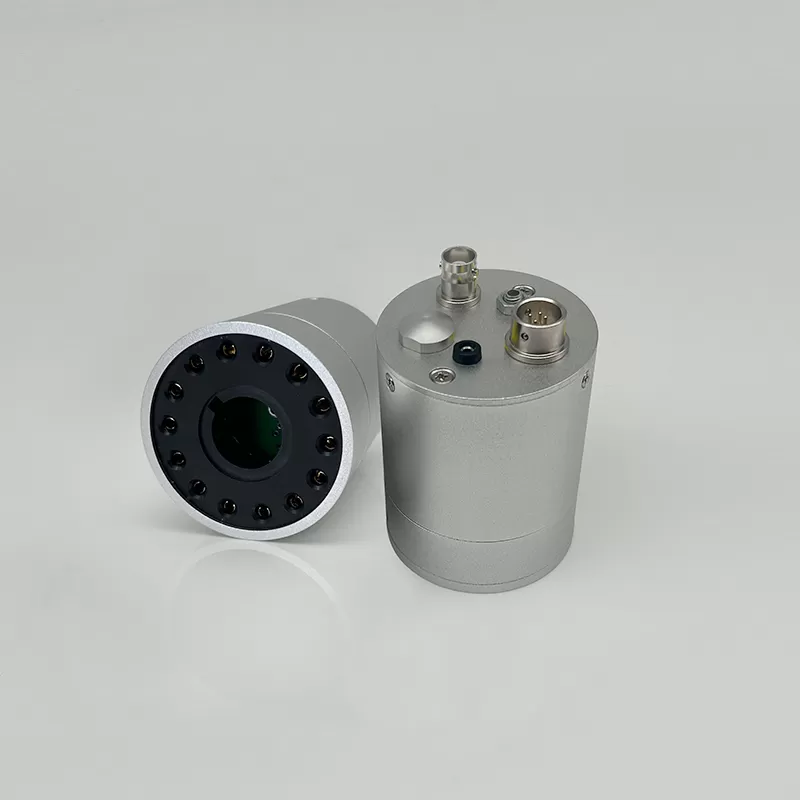

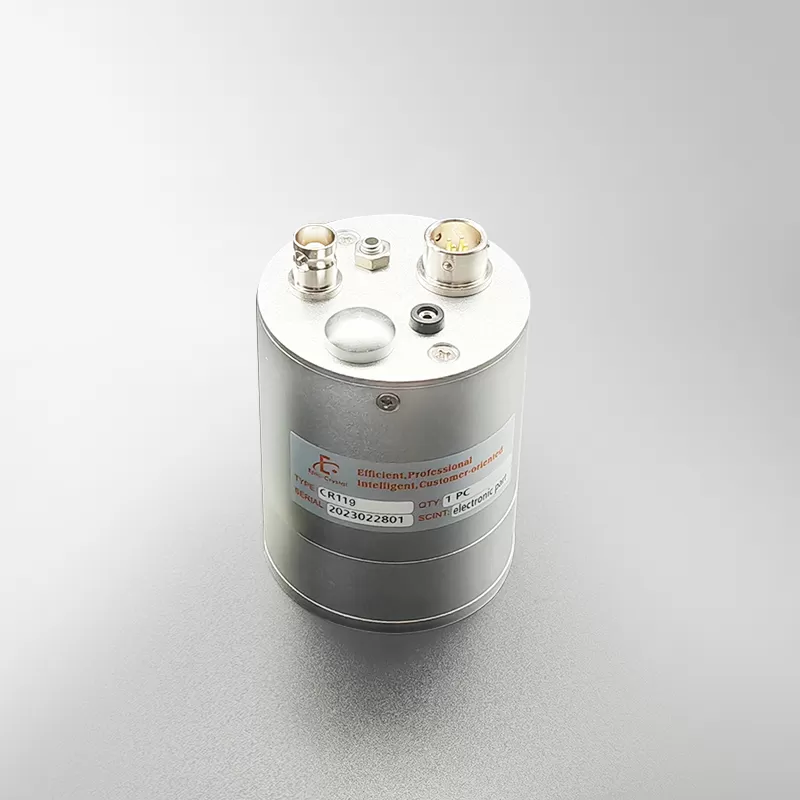

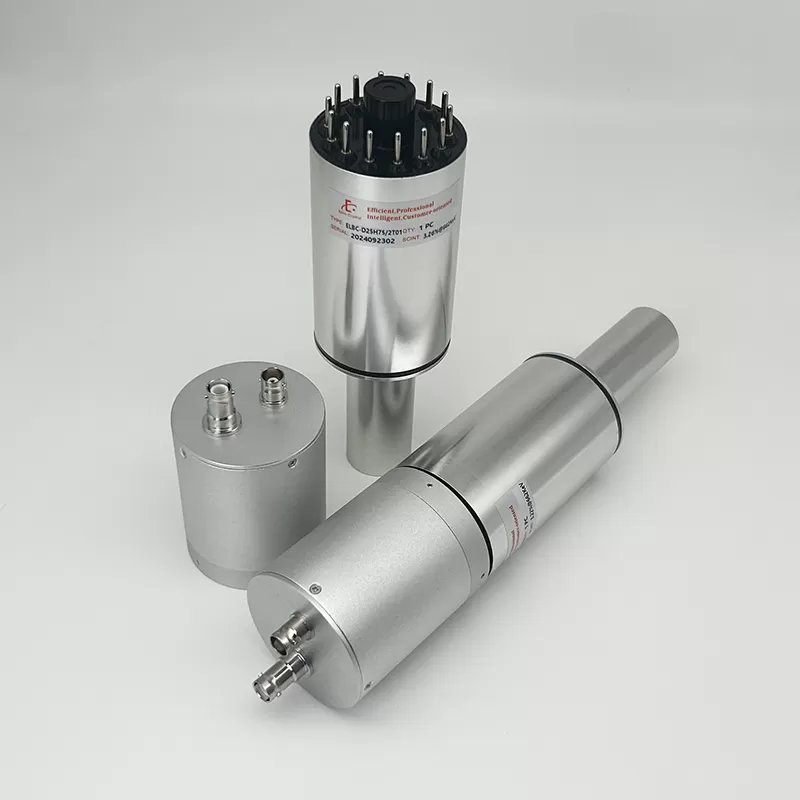

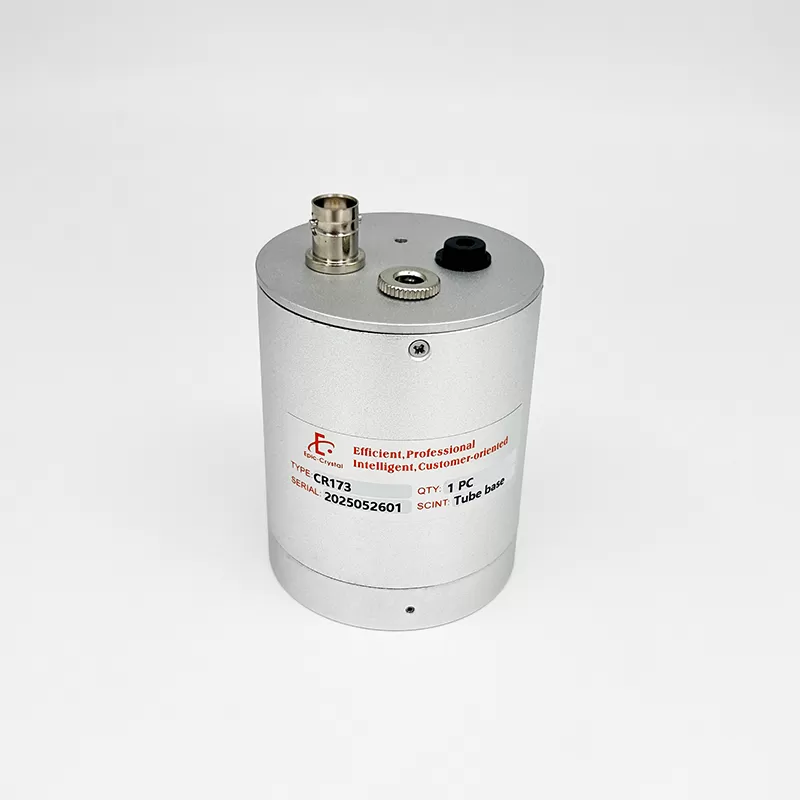

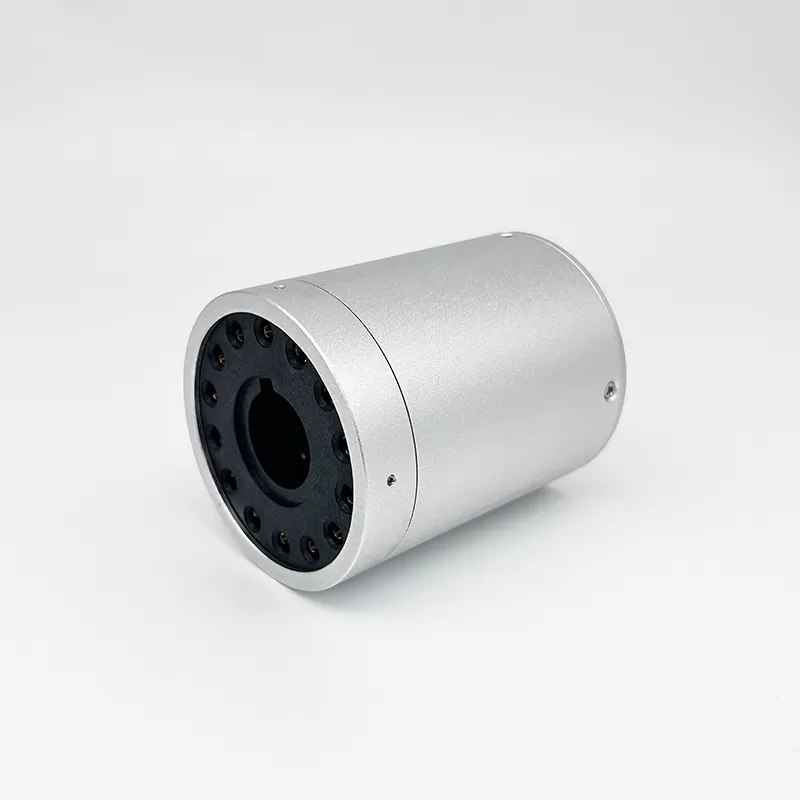

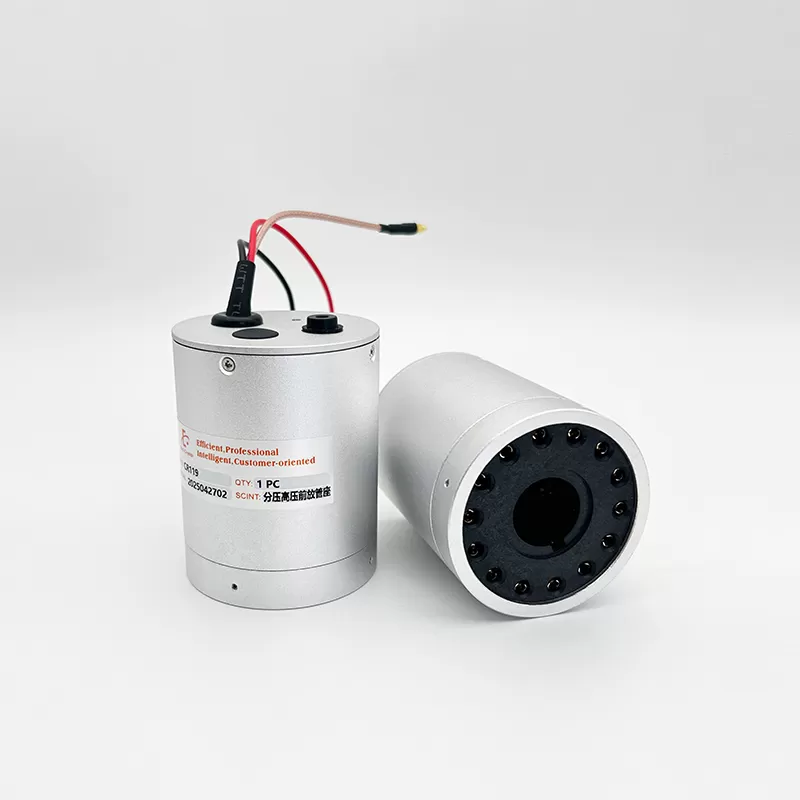

EP series PMT tube sockets, according to the different configurations, can contain voltage dividers, preamplifiers, high voltage power supply and other functional modules, applicable to a variety of specifications of photomultiplier tubes and their composition of the scintillation probes. It can realize a variety of radioactive radiation measurements, the module has a wide range of DC power input (5V ~ 12V), with the appropriate detector, can be directly connected to various types of multi-channel analyzers or calibrators and other equipment.
PRODUCT DETAILS
EP series PMT tube sockets, according to the different configurations, can contain voltage dividers, preamplifiers, high voltage power supply and other functional modules, applicable to a variety of specifications of photomultiplier tubes and their composition of the scintillation probes. It can realize a variety of radioactive radiation measurements, the module has a wide range of DC power input (5V ~ 12V), with the appropriate detector, can be directly connected to various types of multi-channel analyzers or calibrators and other equipment.
Complete set of equipment
Tube socket: 1
Signal output: BNC socket
High voltage adjustment hole
High Voltage Regulated Voltage Test Points
DC low voltage power input: 4P socket
Coaxial signal cable: 1 piece, length 1.5 m
Low-voltage cable: 1 piece, length 1.5 m
Application
The module is mainly used with corresponding photomultiplier tube and scintillation probe
Performance parameters
Output pulses: refer to the description
Pulse Amplitude Range: 0 ~ 5 V
Built-in positive voltage module: 30 ~ 1250 V
Input: Wide range low voltage input (5 ~ 12 V)
Operating environment
Operating temperature: 0 ~ 40 ℃
Relative humidity: ≤90％ (25 ℃)
Power supply: 5 ~ 12 V
Specifications
Dimension: DxH ( mm ) 60x75
Weight: 0.2 Kg
